Linear amplifier 4-Q for DC-motors

MAR 25/2 (12/3)

Technical data

MAR 25/2 (12/3)

Nominal voltage

25 V DC / (12 V DC)

Output current

2 A (3 A)

Power supply

24-0-24 V AC / 2 A (12-0-12 V AC / 3 A)

Set value voltage

±10 V

Maximum Tacho voltage

±50 V DC

Fitting position

vertical

Heat dissipation

convection

Ambient temperature

40°C

Protection class

IP 00

Weight

approx. 0.7 kg

Dimensions (H x W x D)

100 x 55 x 160 mm

Article Code

RMAR25/02V2.0 (RMAR12/03V2.0)

Inputs:

  • Set value 1+2
  • Tacho
  • Final stop
  • Torque

Outputs:

  • Motor connection
  • Auxiliary tension

Adjustment:

  • Set value 1+2
  • Tacho/EMF
  • IxR
  • Offset
  • Gain


Dimensions

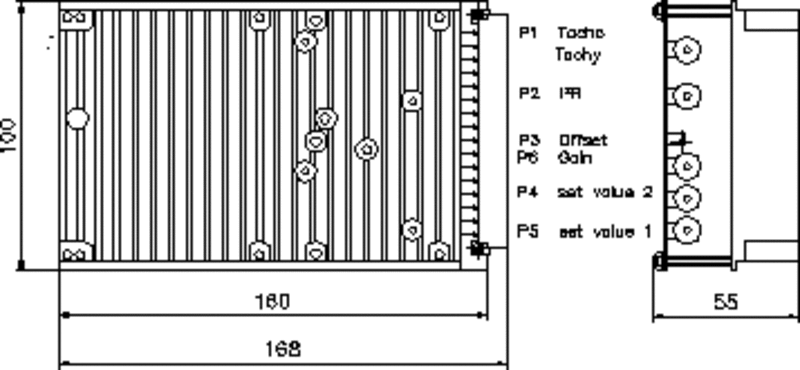

  • Dimensions: MAR 25/2

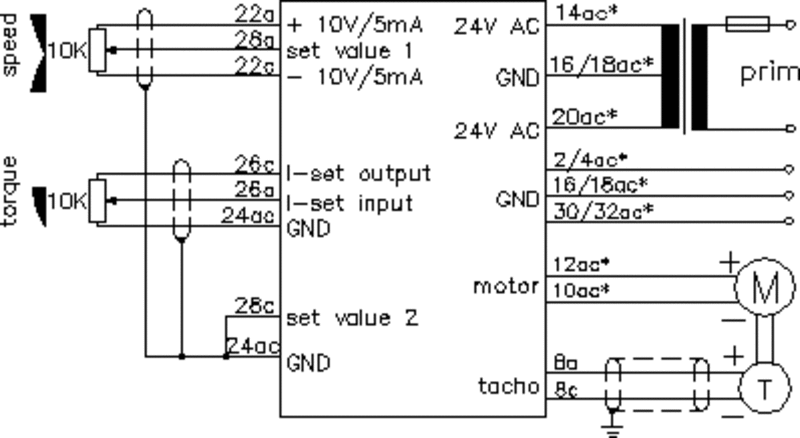

  • Test circuit: MAR 25/2

* Attention:
All signal/control cables must be shielded. Please observe minimal cross section of cable according to VDE 700.

Auxiliary equipment:


inclusive: mating connector, manual
Auxiliary equipment:   support for pcb's


Please do not hesitate to contact us for detailed informations.
