Spur gears Series SAG 22/5

  • Spur gears Series SAG 22/5
    Spur gears Series SAG 22/5

very low backlash*

Article code: GS22/5Ixxxxxx (xxxxxx = ratio i)

Maximum input speed:

4,000rpm

Average backlash charge:

0°

Shaft loading

axial:

<= 5N

radial:

<= 100N

Technical Data:

Ratio
i

Nominal
torque
Mn in Ncm

Pulsed
torque
Mi in Ncm

Efficiency
%

Weight
without motor
g

Length L1 with
motor 2233
mm

29.6

10

40

51

75

61.5

69.2

10

40

43

80

66.4

161.0

10

40

37

85

70.2

377.0

10

40

31

90

75.1

879.0

10

40

26

95

78.9

2,050.0

10

40

22

100

83.8

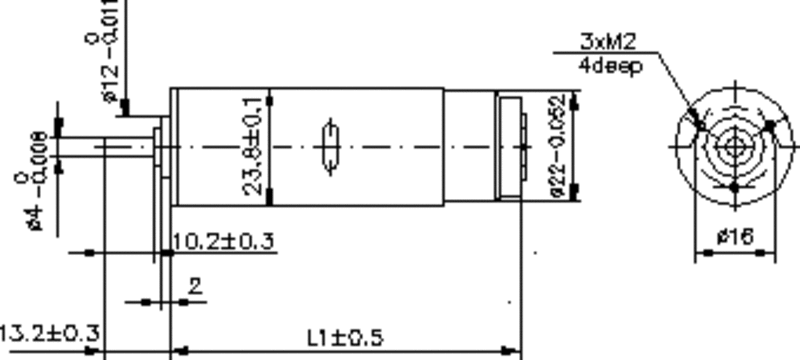

Dimensions:

  • SAG 22/5 + M2233

Similar gear type SAG 16/8 is available fitting to the motor series 1624.

*If mounted to the motor in our workshops.
